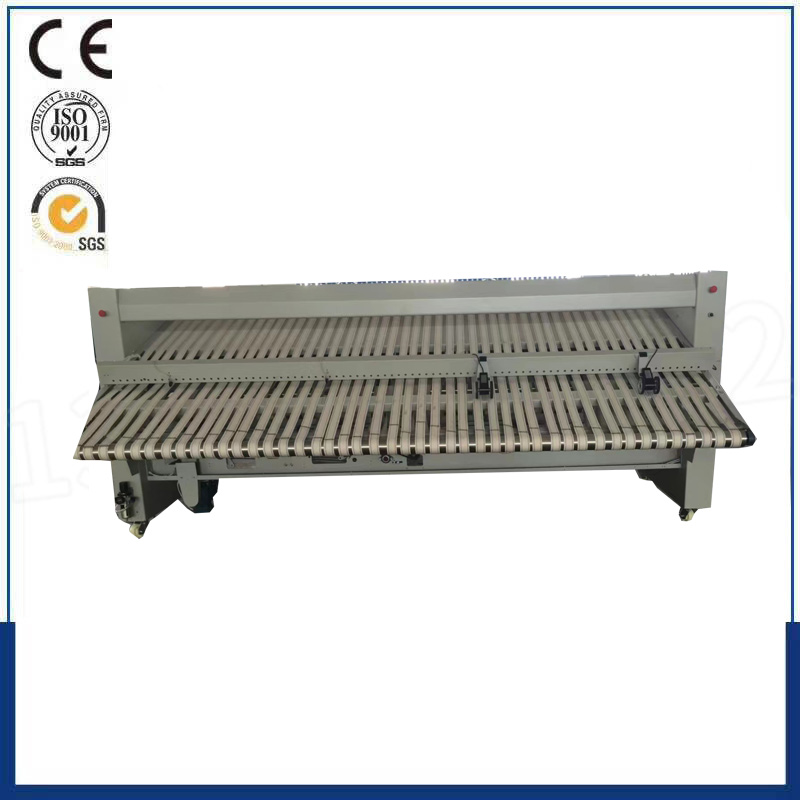

Industrial folding machine
-
Industrial folding machine
-
Industrial folding machine
一、(Main Technical specifications)
Item name | Unit | ZD3000-v | ZD3300-v |
Folding length(max.)×width | mm | 3000 | 3300 |
Maximun folding hierarchy | 次/層 | 5/32 | 5/32 |
Maximun folding speed | m/min | 50 | 50 |
Rated voltage | V/hz | 380/50 | 380/50 |
Rated input power | Kw | 1.87 | 1.87 |
Inlet diameter | mm | φ12 | φ12 |
Minimum inlet pressure | Mpa | 0.7 | 0.7 |
Dimension(L×W×H) | mm | 4160*2930*1750 | 4460*2930*1750 |
Machine weight | kg | 1430 | 1630 |
Weight | KG | 1430 | 1630 |
2、 Product Introduction
1. It adopts a large screen dot matrix LCD display and intelligent control system, and has a good Chinese and English human-machine dialogue interface;
2. Complete 5 folds under computer monitoring, and the number of vertical and horizontal folds can be freely programmed according to the weaving amplitude and thickness;
3. Adopting a highly intelligent infrared detection system, eliminating traditional mechanical pulse counting devices;
4. It has a dual channel folding function, which can double the ironing and folding ability of small linen and reduce energy consumption;
5. The operating speed can be adjusted in a wide range and can be matched with various corresponding ironing machines;
6. It has self diagnosis function, complete safety protection system, and self maintenance function of detection points;
7. The computer board adopts relay output, without the need for intermediate relays, reducing fault points and facilitating maintenance and testing;
8. All control components adopt DC 24V low-voltage components, which are safe and reliable, and have no pollution to the surrounding environment;
9. Each control valve adopts pneumatic control, with fast and reliable action, and no pollution to the surrounding environment;
10. This device is equipped with safety switches in multiple places, ensuring reliable use.
